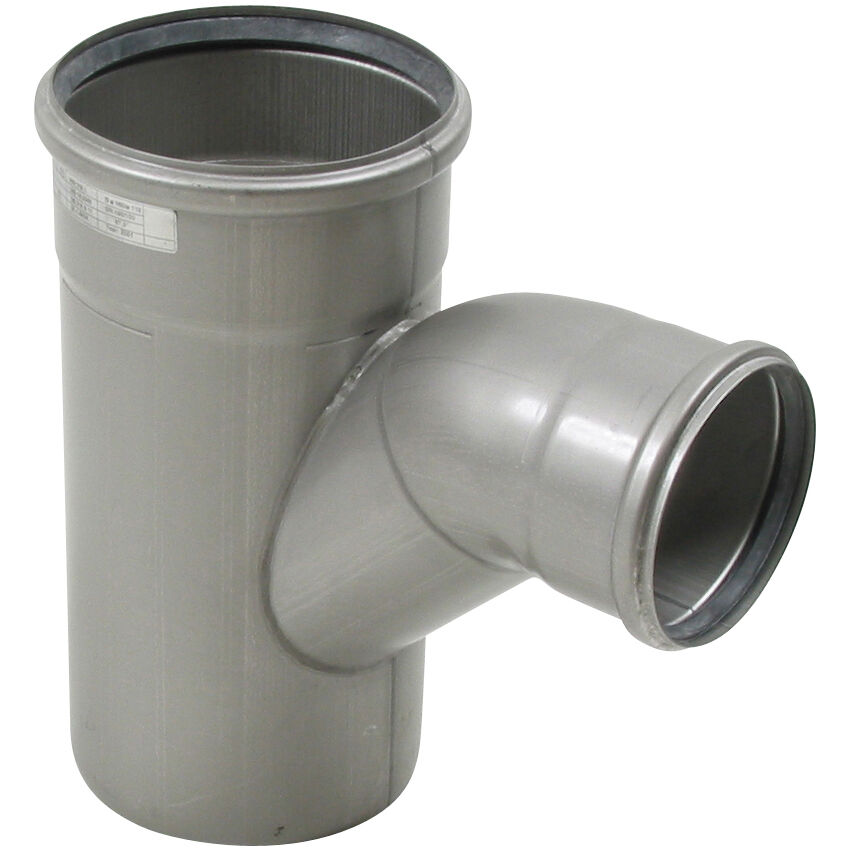

ABZWEIG GEBOGEN 89° - (839.110.160 AS)
Teil von Abzweig gebogen - 89 - langer Bogen
Typ-Nr: 839.110.160 AS
EAN: 5705499409437
NRF-Nr.: 2172642
ABZWEIG GEBOGEN 89°

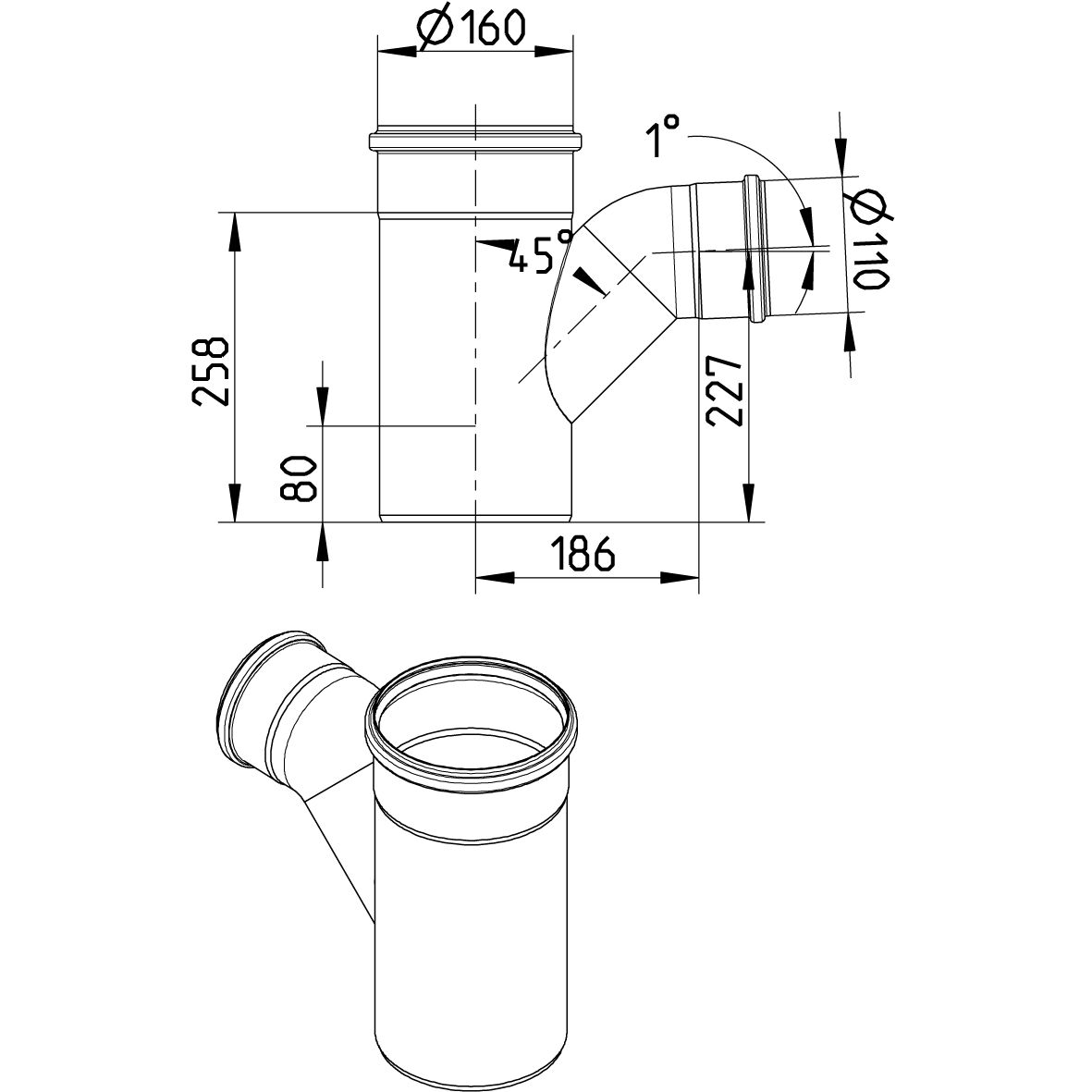

-Rohrdurchmesser: Ø160 mm. Durchmesser Abzweig: Ø110 mm
-Edelstahl: AISI316L/EN1.4404 (V4A)
| Produktspezifikation | |
|---|---|
| Gewicht (kg) | 2,53 |
| Material | AISI 316L (V4A) |
| Material (EN) | EN 1.4404 |
| Stutzendurchmesser (mm) | 160 |
| Winkel (°) | 89 |
-
Downloads
-
Zulassungen und Normen
Informationen zu Zulassungen und Normen finden Sie in den unten stehenden Zertifikaten.
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance BS-EN1124-1-002
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
DK - VA 2.12/19350 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702
